Merchant Signature Verification

Set up signature verification on the merchant side to authenticate API requests using HMAC-SHA256 signed headers.

Prerequisites

Step 1: Generate a secret key

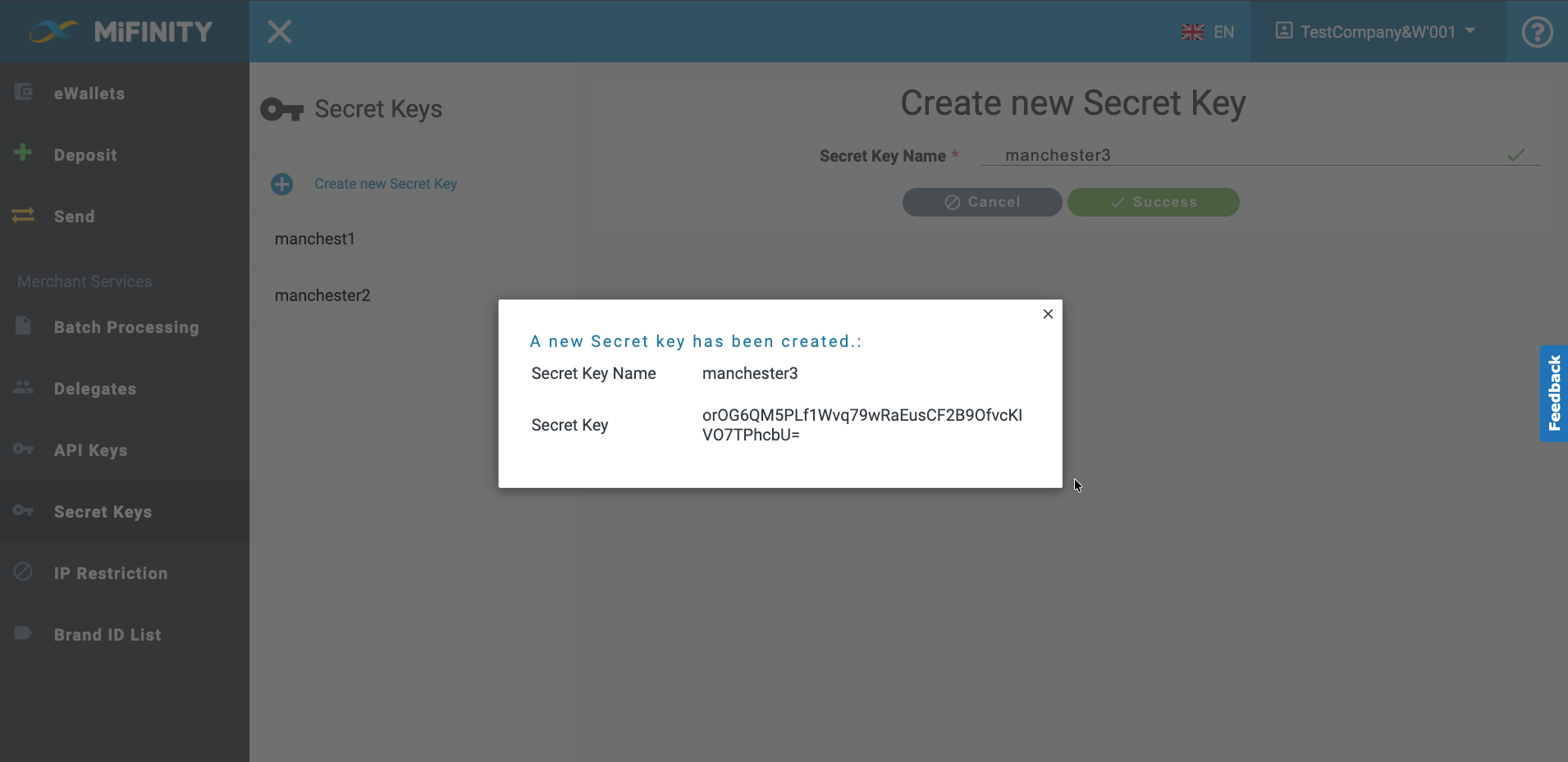

In the Merchant Back Office, click Secret Keys in the side menu. The Secret Keys screen displays.

Enter a name for the new key.
Click Create a new Secret Key.
Copy and save the generated secret key — you need it later to compute HMAC signatures for request verification.

The new key appears in your list of created keys.

📋
Secret key rules:

You can create multiple secret keys, but each must have a unique name.

Only one secret key can be active at a time. New keys are created as inactive if an active key already exists.

You cannot deactivate all keys if you have opted in to signature verification.

Step 2: Opt in to signature verification

Enable signature verification through the Merchant Back Office UI once it becomes available. Contact MiFinity support for current availability.

Step 3: Serialize the request body to plaintext

Before signing a request, serialize the JSON request body into a deterministic plaintext string using these rules:

Rule	Description
JSON body	Parse to an object, then serialize with keys sorted alphabetically.
Concatenation	Append each key followed by its serialized value — no `=`, spaces, or quotes
Null values	Treat as empty string
Nested objects	Recursively serialize using the same rules (sorted keys, key + value)
Lists/arrays	Append only the serialized elements (no key for individual items)
Form data	Same approach: key-sorted, key + value concatenation

Serialization example

JSON request body:

{
  "money": {
    "amount": 10,
    "currency": "BRL"
  },
  "description": "10 BRL PAB",
  "sourceAccount": "5001000000000003",
  "traceId": "8e621176-4bd8-48a4-a310-4cf7b10de0f5",
  "bankPayee": {
    "country": "BR",
    "currency": "BRL",
    "description": "bank payment description",
    "fields": {
      "ACCOUNT_NUMBER": "014580605766",
      "BRANCH_CODE": "12345",
      "PERSONAL_ID_NUMBER": "12345678901",
      "ACCOUNT_TYPE": "1",
      "CUSTOMER_NAME": "Customer Name",
      "BANK_NAME": "Name of Bank"
    }
  }
}

Serialized plaintext output:

bankPayeecountryBRcurrencyBRLdescriptionbank payment descriptionfieldsACCOUNT_NUMBER014580605766ACCOUNT_TYPE1BANK_NAMEName of BankBRANCH_CODE12345CUSTOMER_NAMECustomer NamePERSONAL_ID_NUMBER12345678901description10 BRL PABmoneyamount10currencyBRLsourceAccount5001000000000003traceId8e621176-4bd8-48a4-a310-4cf7b10de0f5

Notice how top-level keys are sorted alphabetically (bankPayee, description, money, sourceAccount, traceId), and nested keys within each object are also sorted.

Step 4: Compute the HMAC signature

Build the X-MiFinity-Signature header using HMAC-SHA256. The signature is computed over a canonical string that includes an HMAC of the serialized request body.

Algorithm: HMAC-SHA256 Key: Your merchant secret key (UTF-8 encoded) Output: Lowercase hex string (not Base64)

Canonical string format

METHOD|URL|TIMESTAMP|HASHED_PAYLOAD

Part	Description	Example
`METHOD`	HTTP method (uppercase)	`PUT`
`URL`	Request URI (path + query string if any)	`/api/payments/pab`
`TIMESTAMP`	Value of the `X-MiFinity-Timestamp` header (milliseconds since Unix epoch)	`1771498513348`
`HASHED_PAYLOAD`	HMAC-SHA256 of the serialized request body, as lowercase hex	`9f274d519bccc641...`

Signing process

Serialize the request body to plaintext (see Step 3).

Compute HASHED_PAYLOAD:

HASHED_PAYLOAD = HMAC-SHA256(secretKey, serializedRequestBody) → lowercase hex

Get the timestamp: Capture the current time in milliseconds (Unix epoch). Use this same value for the X-MiFinity-Timestamp header.

Build the canonical string:

canonical = METHOD + "|" + URL + "|" + TIMESTAMP + "|" + HASHED_PAYLOAD

Compute the final signature:

X-MiFinity-Signature = HMAC-SHA256(secretKey, canonical) → lowercase hex

Step 5: Send the required headers

Include these headers with every signed API request:

Header	Description
`key`	Your API key. Required for the server to run signature verification.
`X-MiFinity-Timestamp`	Current timestamp in milliseconds since Unix epoch (e.g., `1771498513348`).
`X-MiFinity-Signature`	The HMAC-SHA256 hex string computed in Step 4.
`api-version`	API version number (e.g., `1`).
